UV Accelerated Aging Test Chamber With LCD Touch Screen Controller

Brand Name : Haida

Model Number : HD-E802-4

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Name : UV aging test chamber

Temperature range : RT to 70℃

Temperature fluctuation : ≤±1.0℃

Controller : Programmable controller, LCD touch screen

Water usage : 8L/day

Chamber dimension (W*D*H) : 1300*500*1460mm

Contact Now

UV Accelerated Aging Test Chamber With LCD Touch Screen Controller

UV Aging Chamber - UVA.pdf

Product Profile:

UV Accelerated Aging Test Chamber can provide reliable aging test data to make the exact prediction of products’ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.

Standard Features

Item Specification
Chamber dimension (W*D*H) 1300*500*1460mm
Chamber material SUS#304 stainless steel
Temperature range RT to 70℃
Temperature fluctuation ≤±1.0℃
Temperature uniformity 3℃
Humidity range: ≥75%RH
Controller Programmable controller, LCD touch screen
Control mode Balance temperature humidity control (BTHC)
Test cycle setting Exposure, condensation and water spray test cycle is programmable
Water spray cycle Spray 18mins in every 120mins / spray 12mins in every 60mins
Water usage 8L/day
Distance from sample to lamp 55±2mm
Centre distance between lamps 65~70mm
Irradiance range 0.45~0.90W/m2
UV lamps Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime)
Lamp power 40W/Piece
Specimen Size 75×290mm (24pcs) / 75x150mm (48pcs), maximum thickness 5mm
Testing time 0~999H, adjustable
Protection system

Overload short circuit protection

Over temperature protection

Water lacking protection

Earth leakage protection

Auto shut off protection

Applications

Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.

To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.

Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.

Test Criteria

ISO 4892-3

ASTM G154

UV Accelerated Aging Test Chamber With LCD Touch Screen Controller


Product Tags:

xenon test chamber



accelerated aging calculator


Best UV Accelerated Aging Test Chamber With LCD Touch Screen Controller wholesale

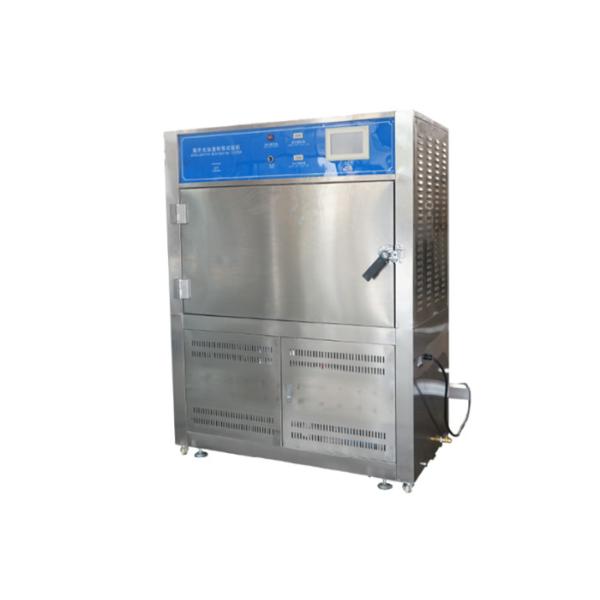

UV Accelerated Aging Test Chamber With LCD Touch Screen Controller Images
